How To Select Valves For Corrosive Media Pipelines? TianyiSuns F4 Gate Valve Delivers The Answer

In industrial settings such as chemical processing, pharmaceuticals, electroplating, and wastewater treatment, pipeline corrosion remains a persistent challenge for maintenance personnel. The continuous attack of strong acids, alkalis, and organic solvents causes ordinary metal valves to leak, seize, or fail within a short period, increasing repair frequency and creating safety hazards. To address this industry pain point, TianyiSuns has introduced the F4 Gate Valve, built around high-performance fluoroplastic lining technology, offering a control solution that combines corrosion resistance, sealing integrity, and cost efficiency for corrosive fluid pipelines.

1. Core Positioning: Solving Corrosive Pipeline Control Challenges

The F4 gate valve is a flow control fitting specifically developed for corrosive fluid conveyance applications. Its design core lies in: the entire inner wall of the valve body is lined with F4 (PTFE) material, utilizing the exceptional chemical inertness of fluoroplastics to effectively resist nearly all strongly corrosive media at ambient temperatures; meanwhile, the outer valve body is manufactured from high-strength cast iron or carbon steel, ensuring the overall structure possesses sufficient pressure-bearing capacity and mechanical strength. This "lined interior, steel exterior" composite structure enables the valve to simultaneously achieve corrosion resistance and structural reliability.

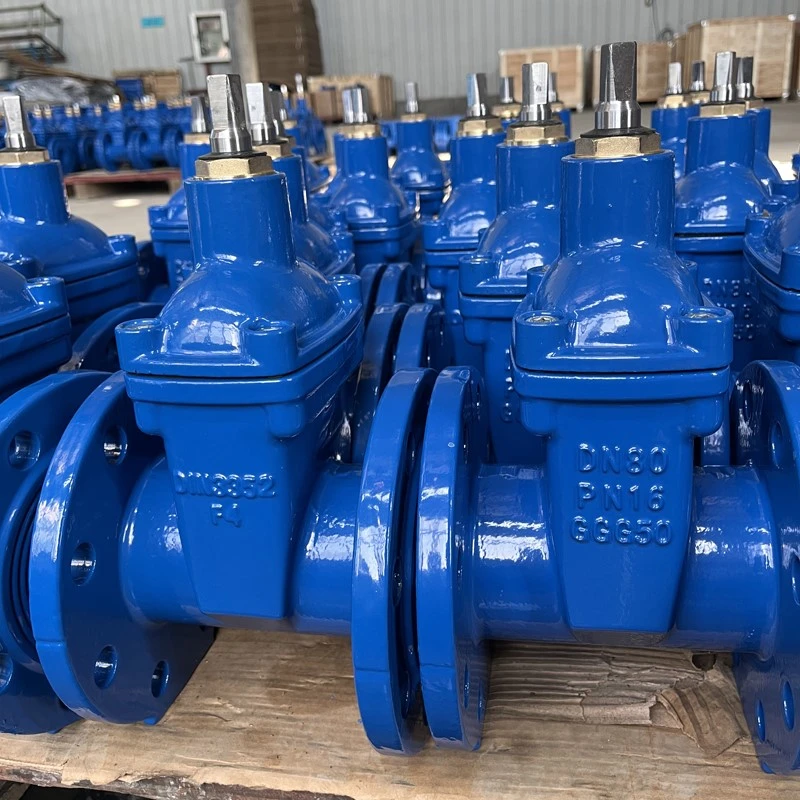

The F4 designation originates from the face-to-face dimension standard. In the European standards system, DIN 3202 F4 specifies the short-pattern face-to-face dimensions for valves. F4 gate valves conform to this short-pattern specification and are typically supplied with PN10/PN16 flanged connections. The valve employs a non-rising stem design, where the stem does not move vertically during operation, making it particularly suitable for underground installations or space-constrained applications.

2. Core Advantages: Corrosion Resistance and Operational Convenience

The core value of TianyiSuns F4 gate valves is reflected in the following aspects:

First, exceptional corrosion resistance. The F4 lining layer on the inner wall of the valve body possesses extremely low surface energy and outstanding chemical stability, resisting attack from strong acids, strong alkalis, salt solutions, organic chemical reagents, and industrial wastewater. F4 material offers a service temperature range typically from -20°C to +180°C and is virtually unaffected by any chemical medium at ambient temperatures. This means that all internal surfaces contacting the medium are completely isolated by an inert material, fundamentally eliminating the risk of metal substrate corrosion.

Second, straight-through design with low flow resistance. The gate valve features a straight-through flow path design. When the gate is fully open, it occupies virtually no flow path space, resulting in minimal fluid resistance and near-zero pressure drop. This characteristic makes F4 gate valves ideally suited for full open/close isolation duties rather than flow throttling applications.

Third, convenient maintenance and cost optimization. The sealing rings and other wear components of F4 gate valves are designed for independent replacement, eliminating the need to disassemble the entire valve body during maintenance. Combined with the compact non-rising stem configuration, maintenance difficulty and costs are effectively controlled. Furthermore, the F4 lining material has a long aging cycle, maintaining stable sealing performance under specified operating conditions, reducing valve replacement frequency and associated downtime losses.

3. Materials

The typical material configuration of TianyiSuns F4 gate valves is as follows:

4. Application Scenarios: Meeting Corrosive Pipeline Control Needs Across Industries

With their exceptional chemical inertness and reliable sealing structure, F4 gate valves are widely used across numerous industrial sectors involving corrosive media. The following sections detail the primary application scenarios:

Chemical Production Pipelines. The chemical industry represents the most critical application area for F4 gate valves. In pipelines conveying strong acids such as sulfuric acid, hydrochloric acid, nitric acid, and hydrofluoric acid, as well as strong alkalis including sodium hydroxide and potassium hydroxide, conventional metal valves often exhibit significant corrosion within months. F4 gate valves effectively isolate the metal substrate from corrosive media and are used at key nodes including reactor feed and discharge lines, storage tank inlet/outlet isolation, heat exchanger bypass control, and waste acid recovery systems. In fine chemical applications, they are also employed for pipeline isolation of various organic solvents and intermediate materials.

Pharmaceutical Preparation Systems. Pharmaceutical production imposes strict requirements on the cleanliness and chemical stability of pipeline equipment. The inert F4 lining does not react with pharmaceutical liquids or leach contaminants, making it suitable for fluid isolation in API synthesis, formulation preparation, and purified water systems. In GMP-compliant facilities, these valves can be used for isolation control in acidic and alkaline liquid transfer lines, solvent recovery pipelines, and clean-in-place (CIP) systems, meeting the pharmaceutical industry's dual requirements for media purity and equipment corrosion resistance.

Electroplating and Surface Treatment. Electroplating production lines involve chromic acid, copper sulfate, nickel salts, and various highly corrosive electrolytes. F4 gate valves can be used for plating bath liquid feed and discharge control, medium isolation in pickling and phosphating production lines, rinse water recovery pipelines, and waste liquid discharge system flow control. Their corrosion-resistant lining withstands long-term chemical attack from plating solutions, reducing plating bath leakage and production line downtime caused by valve corrosion.

Municipal and Industrial Wastewater Treatment. Industrial wastewater often contains acidic and alkaline substances, heavy metal ions, and organic pollutants, imposing high demands on valve corrosion resistance. F4 gate valves are suitable for industrial wastewater collection pipelines, neutralization treatment systems, sludge conveyance lines, and chemical dosing system isolation control. In municipal wastewater treatment plants, they can be used for valve integration in sewage pipelines containing corrosive components and reclaimed water reuse systems.

Environmental Engineering and Waste Gas/Liquid Treatment. In flue gas desulfurization and denitrification systems, F4 gate valves can be used for pipeline isolation of lime slurry, ammonia water, and process water. In waste liquid incineration and hazardous waste treatment systems, they are employed for the control of corrosive waste liquid conveyance lines. Additionally, in seawater desalination and salt chemical industries, these valves can be used for pipeline isolation operations involving high-salinity media.

Other Industrial Applications. Beyond the primary scenarios described above, F4 gate valves can also be applied to acidic leaching solution pipelines in non-ferrous metal smelting, corrosive raw material conveyance in pesticide production, chemical medium control in the dye and pigment industry, and small-diameter corrosive fluid pipeline integration in laboratory pilot plants.

Whether for new project pipeline installations or upgrades of existing valve systems, TianyiSuns F4 gate valves can be customized to suit pipeline nominal diameter, working pressure, medium type, and operating temperature, providing reliable assurance for corrosive pipeline control across diverse industries.
