T-type Ductile Iron Pipe
Product Name: T-type Ductile Iron Pipe
Accessory: Rubber Gasket (SBR, NBR, EPDM)
Standard: EN545
Class: K9, Class C
Range: DN80-DN2600
Accessory: Rubber Gasket (SBR, NBR, EPDM)
Coating:
Internal:
Portland cement mortar lining
Sulphate Resistant cement mortar lining
High-Aluminum cement mortar lining,
Ceramic epoxy
polyurethane
External:
Zinc with finishing layer of bituminous paint
Zinc with finishing layer of liquid epoxy painting
Zinc-Aluminum alloy plus liquid epoxy painting
Polyurethane
The coating can be accordance with customers' requirements.

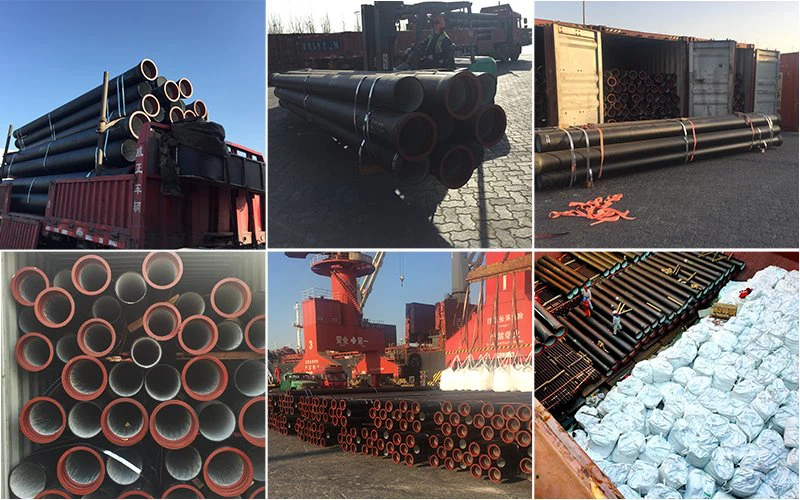

T-type Ductile Iron Pipe Packing:
The pipe diameter under 300mm is bundled with steel belts and over 300mm is in bulk.
T-type Ductile Iron Pipe Features:
1. High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time
2. Chemical composition: (%)
a) C: 3.5 - 4.0
b) Si: 1.9 - 2.6
c) Mn:0.15 - 0.45
c) P: <0.06
d) S: <0.02
3. Mechanical properties
a) Tensile strength: ≥420MPa
b) Yield strength: ≥300Mpa
c) Hardness: ≤230HB
d) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7
4. Process and testing:
a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
