Y Type Strainer is device for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. It is used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.
Y Type Strainer Description
* Body Material: Cast Iron or Ductile Iron
* Construction: Y-Strainer Type or Basket Strainer Type
* Stainless Steel Screen Available in Wide Variety of Meshes and Perforations
* Bolted-On Cover Provides Easy Access to Interior for Routine Maintenance
* Design Prohibits Galling or Scoring of Seating Surfaces
* Epoxy Powder Coating or Paint Coating
* Size Range: NPS 2" ~ 12" ; DN50 ~ DN300
* Pressure Rating: Class 125 / Class 150 ; PN10 / PN16
* End Type: FF, RF, Threaded ( NPT / BSP / BSPT ), etc.
Y Type Strainer Technical Specifications
* Design and Manufacture: ASME B16.34
* Face to Face Dimensions: ASME B16.10 or DIN 3202 F6
* Flange Ends Dimensions: ASME B16.1 or DIN 2501 PN10 / PN16 or BS 10 Table D and E or AS 2129 Table D and E
* Threaded Ends Connection: ASME B1.20.1 or ISO 228 or DIN 2999
* Inspection & Test: API 598 or DIN 3230
Y Type Strainer FEATURES
Main parts of all kinds of pumps, valves in the pipeline
Mainly used to filter dirt, rust and other debris

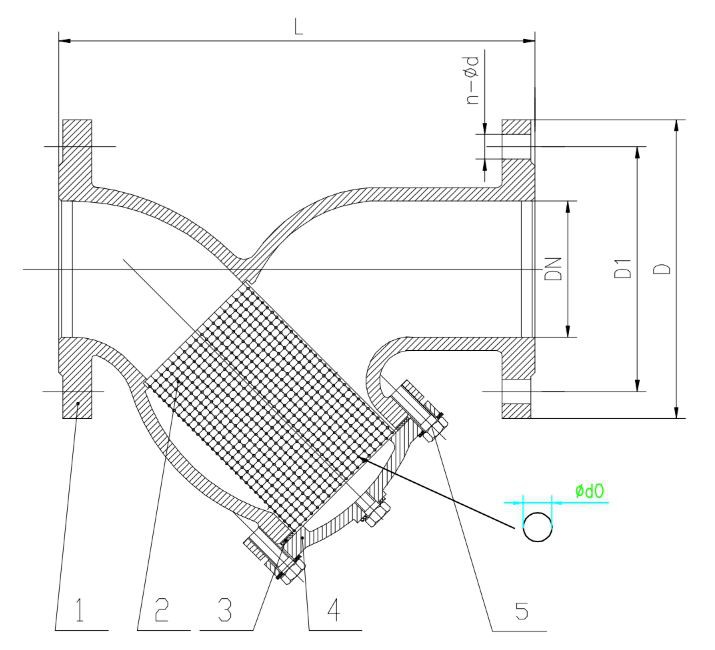

Y Type Strainer
No. | Part name | Material | Standard |
1 | Body | Ductile Iron | ASTM A536 |
2 | Screen | Stainless Steel | ASTM A370 |
3 | Seating | Rubber | |
4 | Bonnet | Ductile Iron | ASTM A536 |
5 | Bolt | Stainless Steel | ASTM A370 |
