Our company aims at the value of integrity, mutual sharing, win-win and innovation, we are willing to provide customers with high quality Swing Type Check Valve, EN598 Ductile Iron Pipe, Lug Type Butterfly Valve at reasonable price! Our company is customer-oriented and strive to meet customer requirements with satisfactory quality, innovative technology, complete varieties, reasonable suggestions and services. We strive to achieve our development goals and make every effort to transform to high-quality development.
Features

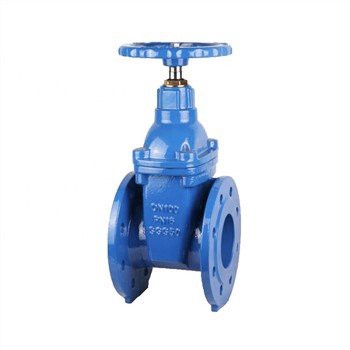

F4 Gate Valve
* Bolted Bonnet * Replaceable O-ring * Rubber encapsulated wedge, Brass Wedge Nut. * Fusion bonded epoxy coated inside and outside ,blue RAL 5005, 250 Micron thick
* Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
F4 Gate Valve
F4 Gate Valve
Item No. | Part Name | Specification |
1 | Body | Ductile Iron EN- GJS- 500- 7 |
2 | Wedge | Ductile Iron EN- GJS- 500- 7 |
3 | Wedge Coating | NBR /EPDM EN 681-1 |
4 | Wedge Nut | Copper Alloy |
5 | Stem | Stainless Steel X20 Cr13 |
6 | Bonnet Gasket | NBR /EPDM EN 681-1 |
7 | Bonnet | Ductile Iron EN- GJS- 500- 7 |
8 | O Ring Back Sealing | EPDM/NBR |
9 | Stem Washer | PTFE |
10 | O-Ring | EPDM/NBR |
11 | O-Ring | EPDM/NBR |
12 | Stuffing Nut | Copper Alloy |
13 | Dust Guard | EPDM/NBR |
14 | Handwheel | Ductile Iron EN- GJS- 500- 7 |
15 | Stem Cap | Ductile Iron EN- GJS- 500- 7 |
FAQ
Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
We are vigorous and ambitious with a worldwide vision. With talented people, first class management, high quality products and feasible business model, our company leads the DIN F4 or BS5163 Non-Rising Stem Gate Valve industry. We are committed to realizing the needs of society regarding the sustainability of the global environment by strengthening our efforts to promote environmentally friendly businesses in order to effectively address global issues. We have standardized workshops and advanced production equipment of various technical levels, and can produce products that meet customer requirements at any time according to the needs of customers. Every day our products flow from our factories to all over the world.
Hot Tags: f4 gate valve, China f4 gate valve suppliers, manufacturers, Dismantling Joint, butterfly valve cpvc, Ductile Iron Reducer, water tank man hole, fire safe butterfly valve, sunken manhole cover
